Double Layer Rollformer Ibr Sheet Roll Forming Machine Price

Name: Double Layer Rollformer Ibr Sheet Roll Forming Machine Price
Brand: WADJAY
Price: 1 USD

Double Layer Rollformer Ibr Sheet Roll Forming Machine Price Manufactures

Brand Name : WADJAY

Model Number : Tile Forming Machine

Certification : CE,ISO 9001

Place of Origin : china

MOQ : 1 set

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Production Capacity : 15 m/min

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 6.5*1.8*1.6 meter

Weight : 2500 kg

Rolling thinckness : 0.3-0.8mm

Feeding width : 1000mm

Contact Now

Product Overview

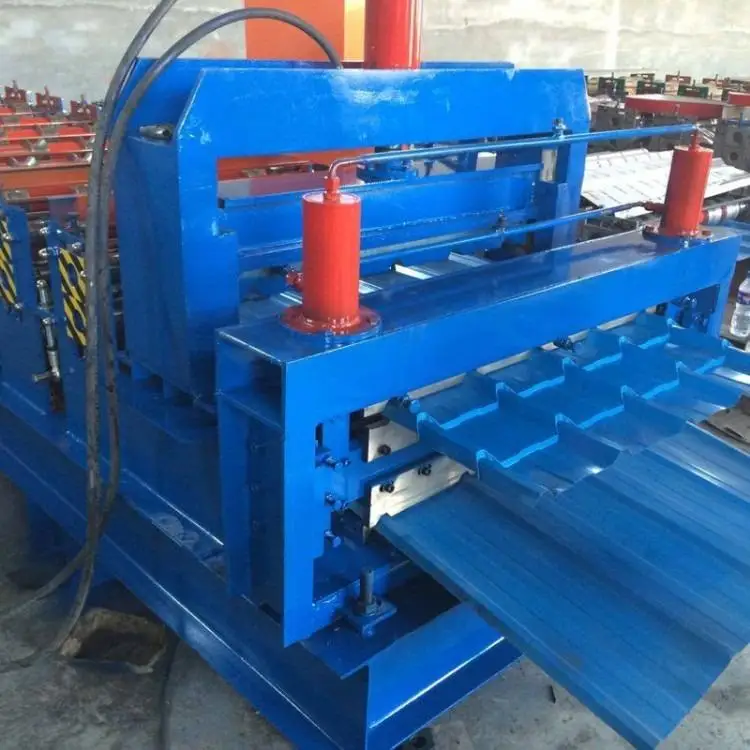

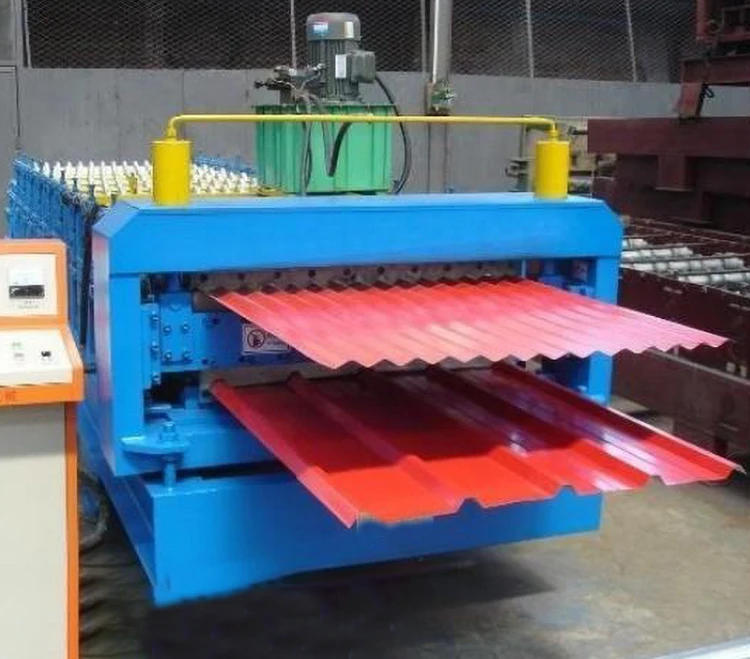

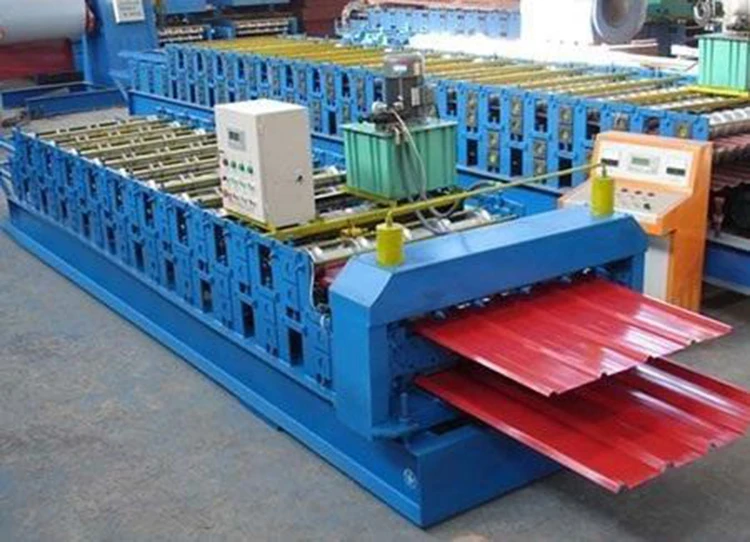

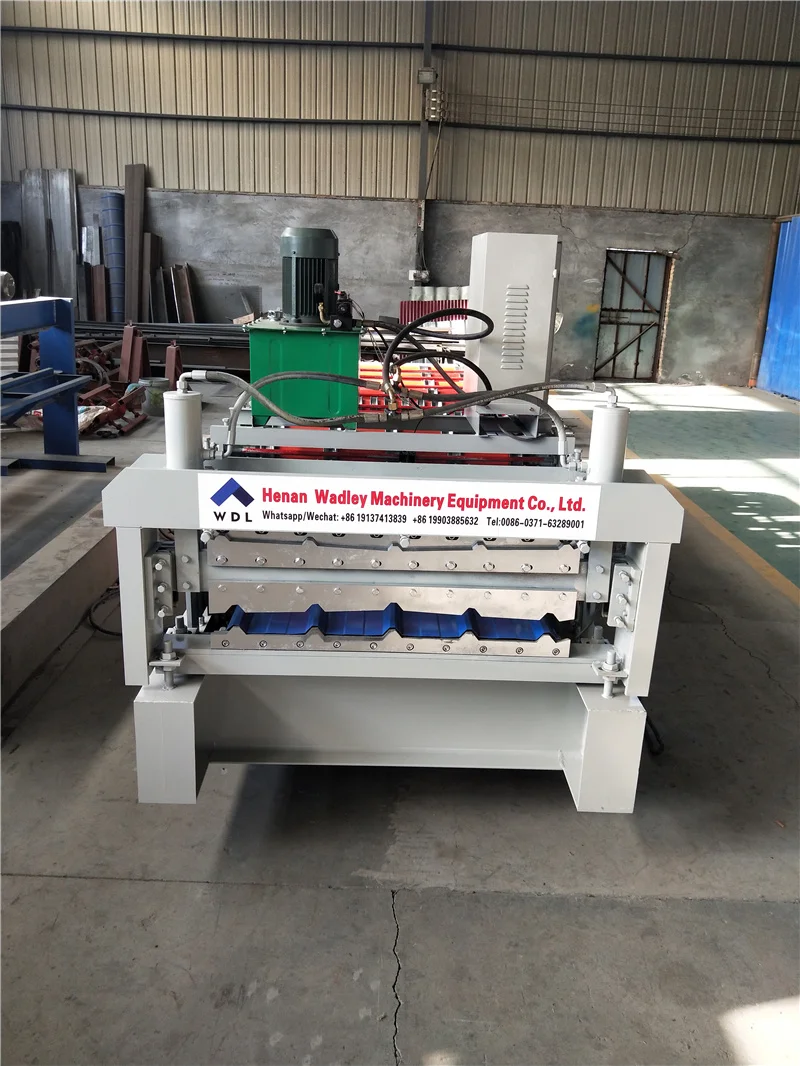

Double Layer Roll Forming Machine

Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet double layer roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

Double Layer Rollformer Ibr Sheet Roll Forming Machine Price

00:01

01:01

PRODUCT SPECIFICATIONS

No	Item	Data
1	Raw material width	1000-1200 mm
2	Sheet effective width	750-1000 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	70 mm
7	Forming roll station	8-16 steps
8	Main motor power	3 KW 4 KW 5.5 KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

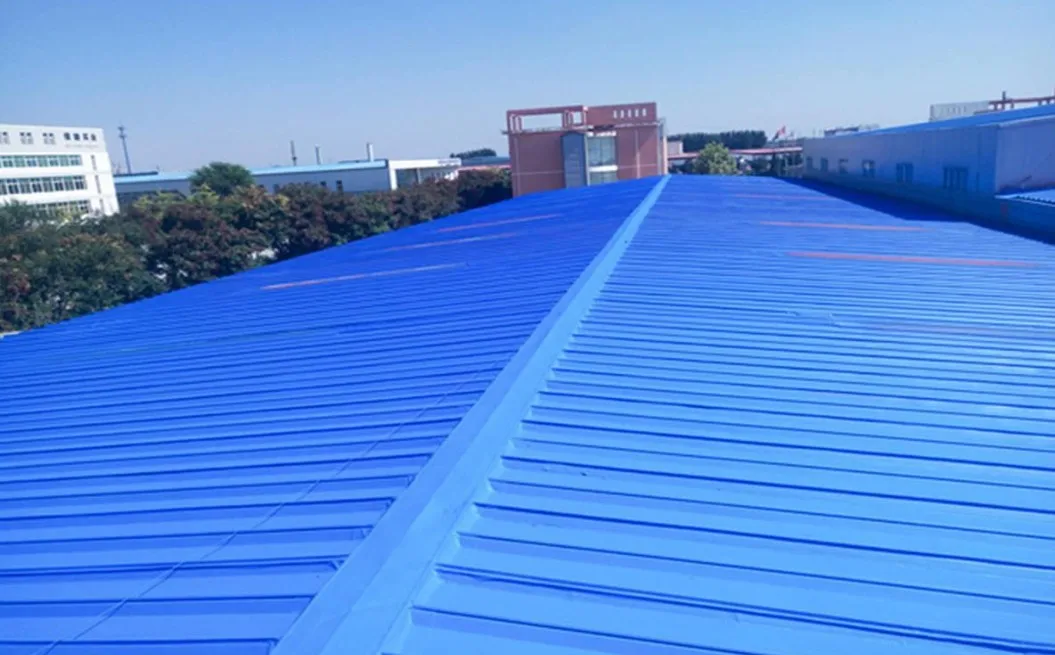

Roof sheet double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Details Images

Decoiler

roof sheet double layer roll forming machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.  This loading frame decoiler also can use in other type machine, customer can buy it alone.

Machine frame

roof sheet double layer roll forming machineadopts welded steel frame structure, it make sure roof sheet machine can operation more stableAC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.

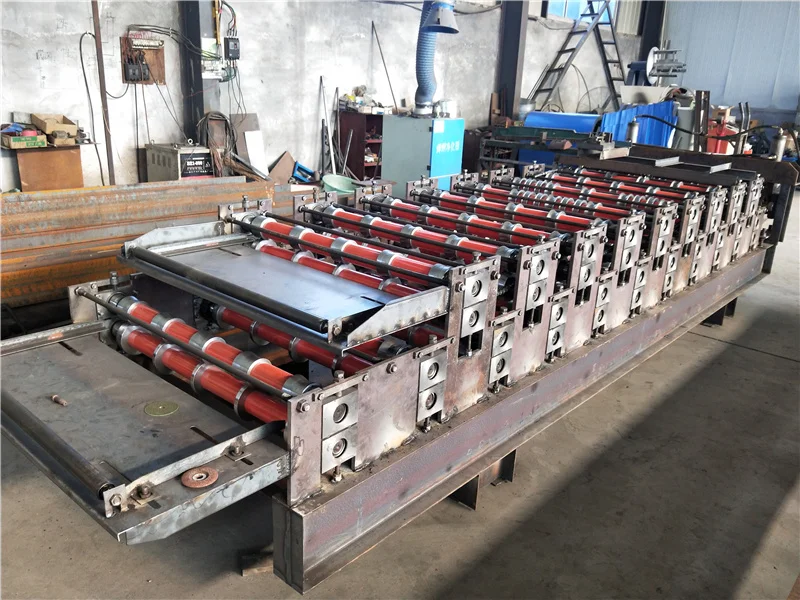

Forming roller

roof sheet double layer roll forming machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers

Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.

Control part

roof sheet double layer roll forming machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.

Successful Project

Project in Thailand

Project in India

Project in Russia
